Cotton Gin Data Collection Systems –
RUSTY’S WEIGH SCALES has built cotton gin data collection systems since the late 1980’s. This enables us
to build a data collection system to satisfy any gin operation to increase efficiency, accuracy and flexibility for the gin. All systems are designed with industry standard NTEP approved Mettler Toledo IND360 weigh terminals. We have installed systems in gins all over the world to process bale data at speeds over 120+ bales per hour. We also can handle dual press cotton gins and keep the data correct. We offer 24/7 support year-round.
Product Information

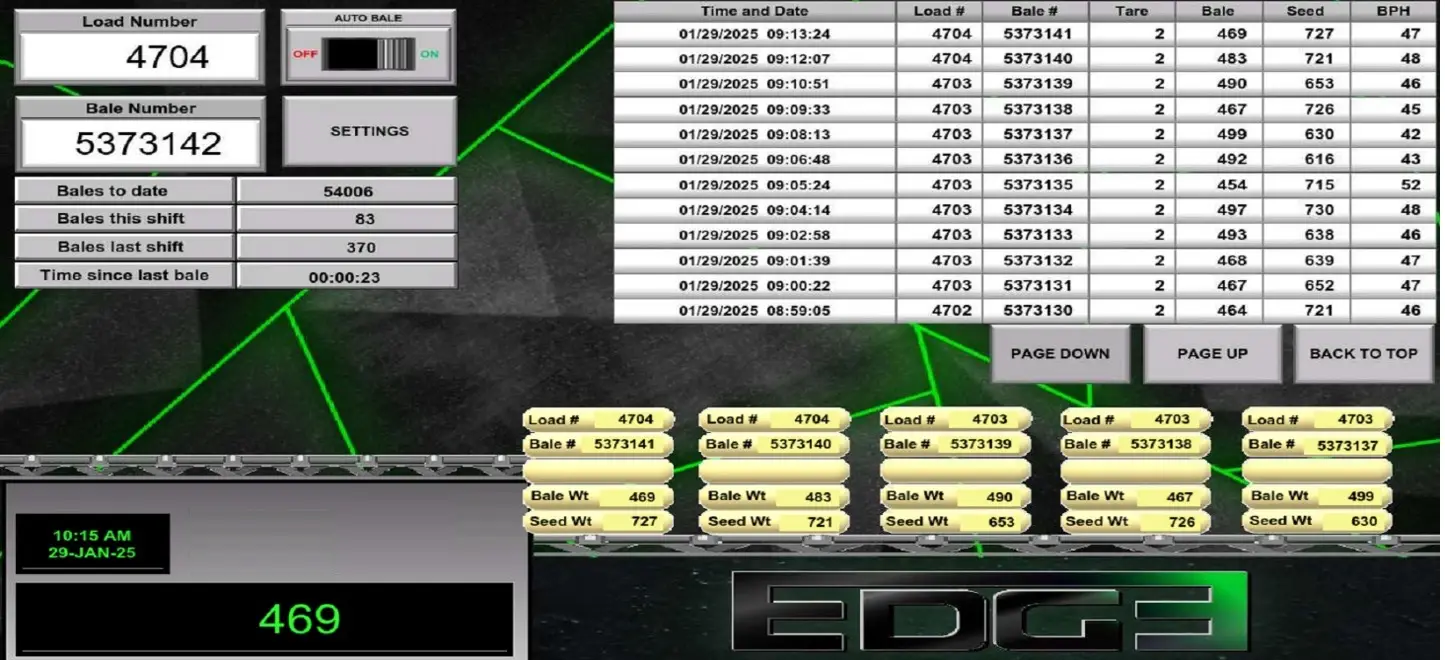

EDGE.2021 BALE CONTROLLER AND DATA COLLECTION SYSTEM
- 15″ Industrial Color Touch Screen
- Industrial PLC Operational Control
- On Board SQL Server, Records Data from Bale Scale (SD Card)
- VPN – Remote Access Monitoring and Remote Troubleshooting
- On Board Data Logger and Alarm History Viewer
- Digital I/O Control and Expansion Capabilities
- All Data Storage DOES NOT Require Internet Connection
- 5 Previous Bales On Screen and Real Time Update with Each New Bale
- Interfaces to Most Seed Scales for Data Input
- Data Integrates to Most Accounting Software Systems
- Panel Mount IND360 Weigh Controller
- Wireless Barcode Scanner
- Free Standing Console (IP 65 Rated)

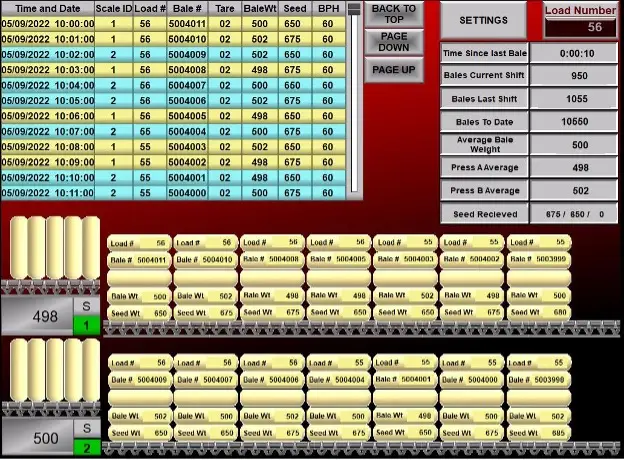

EDGE.2021 DUAL PRESS BALE CONTROLLER AND DATA COLLECTION SYSTEM
- 15″ Industrial Color Touch Screen
- Industrial PLC Operational Control
- On Board SQL Server, Records Data from Bale Scale (SD Card)
- VPN – Remote Access Monitoring and Remote Troubleshooting
- On Board Data Logger and Alarm History Viewer
- Digital I/O Control and Expansion Capabilities
- All Data Storage DOES NOT Require Internet Connection
- 7 Previous Bales On Screen and Real Time Update with Each New Bale
- Interfaces to Most Seed Scales for Data Input
- Data Integrates to Most Accounting Software Systems
- (2) Panel Mount IND360 Weigh Controller
- Wireless Barcode Scanner
- Free Standing Console (IP 65 Rated)

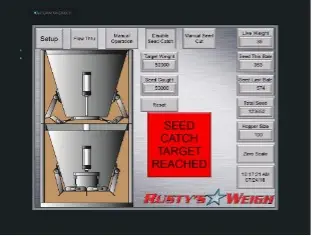

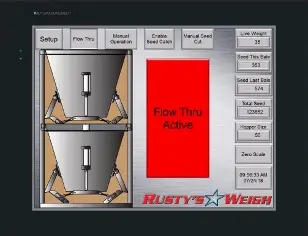

SEEDPLUS SEED CONTROLLER
- Mettler Toledo IND360 Weigh Controller
- PLC Logic Controller
- Graphical Color Touch Display
- VPN – Remote Access Monitoring and Remote Troubleshooting
- Quick Touch Access For Flow Through Mode, Seed Catch Mode
- Soft Touch Set Up Access
- Ethernet Communications for a Continuous Reliable Connection.
- Digital Process I/O Controller
COTTON ROUND BALE IDENTIFIER UNWRAPPER SCALE
- Mettler Toledo SWB605 Power Mounts w/ Wiring Kit
- 5,000lb each Mount / 20,000lb Capacity Scale
- Rusty’s Weigh Unmanned Module Tracking System – Captures RF ID tag from each round module, weighs it and sends to server. Fully automated.
- HMI at scale to monitor as needed
- Stack light for error reporting
- Additional Office Software Packages may be required
Unattended Weigh Systems
SENTRY XIV UNATTENDED COMMODITY WEIGHING TERMINAL
- First actual hands-free Unattended Module Truck Weighing Terminal
- Driver simply drives on the scale, the Sentry does the rest
- Designed to record John Deere© Round Bales as well as Industry Standard Modules
- Fully customizable to meet your facility needs
EVO X UWS 8” PC / PLC
- 8” Panel Mount PC / PLC
- Thermal Receipt Printer
- Outdoor Rated Alpha / Numerical Keyboard
- Ethernet Communications for a Continuous Reliable Connection.
- 8” Traffic Light with 3 signals: Red, Yellow and Green
- Outside Enclosure with Rain Guard and Pedestal / Pole Package
